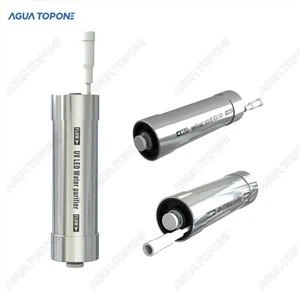

UV Led Purification

Name: UV Led Purification
Brand: Agua Topone
SKU: 212881182

If you are looking for UV water purification without mercury? please have a look at Agua topone's new release UV LED.

REQUIREMENTS BELOW FOR YOUR WATER QUALITY
* Max operating pressure: 8bar (116 psi)
* Temperature of water: 2 - 40 ℃ (about 36 - 104 ℉)
* Iron < 0.3ppm (0.3 mg / L)
* Hardness < 7gpg (120 mg / L)
* Turbidity < 1 NTU
* UV transmittance > 75%

Send Inquiry

Product Introduction

UV Led Water Purification is the process of using ultraviolet rays generated by LED lamp beads to kill bacteria, viruses and other microorganisms. UV rays damage the DNA or RNA of bacteria and viruses, preventing them from multiplying and causing harm.

The principle of LED UV lamp bead sterilization is similar to that of traditional UV sterilization lamps, but LED technology offers higher energy efficiency and longer lifespan. UV Led Purification is widely used in various fields, such as home, healthcare, food and beverage, and water treatment, to disinfect and purify air and water.

FAQ
1.What is the technical parameter of AGUA TOPONE UV Led Purification?
*Model No.:AGLED-40002
*Max flow rate: 4LPM (1GPM)
*In/outlet: 1/4" quick fittings
*Dimension: 38*129mm
*Operation voltage: 12VDC / 24VDC
*Operation current: 0.7A@12V 0.35A@24V
*Rated power: 8w
*Luminous power: 160mW
*LED lifespan: 7,000 hours

2.How it works?
Works in the optimal wavelength range of 254nm, effectively destroys harmful particles. This process works by creating damage in the particles' genetic material, interfering with their ability to replicate and ultimately rendering them inactive.

3.Advantages of AGUA TOPONE UV led water purifier?
*UVC LEDs have hit major milestones in both total power output and pricing.
*Savings directly dollar for dollar over mercury lamp reactors.
*Non-toxic UVC LED-based systems use simple DC power systems.
*Longer life of on-demand UVC LED reactors—often lasting the full lifetime of the appliance. *Convenient maintains, no replacement charge for

4.How does LED UV Purification compare to mercury UV lamps?
Mercury UV lamp sterilizers and LED UV lamp bead sterilizers use different methods to kill viruses and destroy microorganisms.Some comparisons below:

	Mercury UV lamp	AGUA TOPONE UV LED Purification
Mercury content	20-200mg	NO
Using life	1 year	Min 5 years lifetime
On-off times	Max 10000 times on/off	more than 100,000 times
Preheat time	up to 5 min	instantaneous
Water temperature	up to 35℃	no change
Durability	Fragile glass tube	Rugged semiconductor
Power supply	110-24VAC	12VDC / 24VDC

UV LED technology is set to provide new, improved, and expanded solutions in both air and water treatment. Dual barrier, post-filtration protection is now available where mercury-based systems could not previously have been conceivably used.
