Uvc Led Water Sterilizer
video

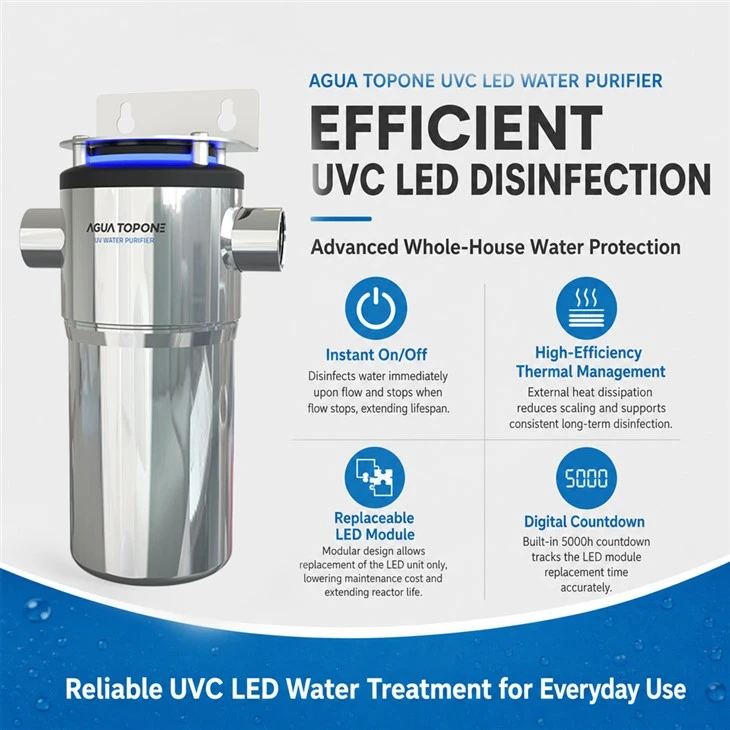

Uvc Led Water Sterilizer

*Energy-efficiency: Lower energy consumption.
*Eco-friendly: No harmful chemicals such as mercury.
*Long service life: Lasts longer and requires less maintenance.
*Flexibility: Adaptable for specific needs and applications.
*Modular design: Integrates water flow switch, flow limit valve, easy to install and use.
Send Inquiry
Product Introduction

Product Introduction



AGLED-40012 6

UVC LED products have significantly lower energy consumption compared to traditional UV lamps, which helps reduce energy usage and operational costs. Environmentally, UVC LEDs are mercury-free and do not contain any harmful substances. The design also adopts a modular structure, integrating a water flow switch and flow limit valve. Its sturdy and compact design allows for easy integration into various systems, making installation convenient.

The sterilization efficiency can reach 99.99%, and the sterilization effect is certified by SGS

 It provides instant sterilization, with no heat generation, mercury-free, and operates in a pure physical sterilization mode.

 Immediate on/off function with no warm-up time.

 All materials comply with RoHS and REACH environmental requirements, and all water-contact components meet food safety and water quality standards.

Product Parameters

Product Dimensions

289mm×108mm×154mm

LED Lifespan

5000Hour

Model No

AGLED40012

Start-up Flow Rate

2L /Min

Maximum Flow Rate

12GPM

Switching Cycle Count

100000

Maximum Inlet Pressure

0.8MPa

Net Weight

3.3 KG

Operating Voltage

100-240VAC

 In/outlet:

 1"female

Operating Current

1.3A(100V);0.55A(230V)





Rated Power

50 W





Optical Power

2000 mW





Applicable Water Temperature

145℃





product details

UV-LED40012XQY07

Lamp Status Monitoring Easy to Maintain

UV-LED40012XQY04

Equipped with long-life,high-radiation LED bulbs

-213

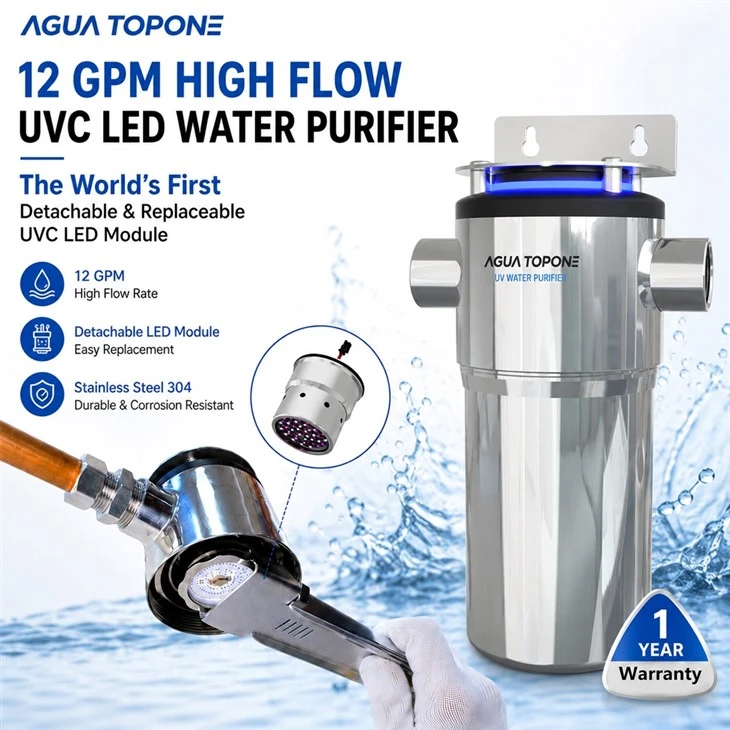

12 GPM Water Processing Capacity



Precautions



Here is the translation of the precautions:



1.The module should be protected from heavy impacts and collisions.

2.Please use the correct input voltage to drive this module; otherwise, the module may be damaged.

3.Do not reverse the polarity of the module's connections, as this may cause damage to the module.

4.When the water quality of the sterilized object is turbid, or when the water has high hardness and high calcium and magnesium content, the sterilization effect may be weakened. Therefore, it is recommended to install a filtration device at the water inlet of the module to reduce the impact of water quality on the sterilization effect.

AGLED-40012 4



Products Description




Mercury UV Lamp VS UV C LED
products
AGLED-40012 3
-313
  AGUA TOPONE UV LED  Mercury UV lamp
Mercury content NO 20-200mg
Using life Minium 5 years lifetime 1 year
On-off times more than 100,000 times Maximum 10000 times on/off
Preheat time instantaneous up to 5 min
Water temperature no change up to 35℃
Durability Rugged semiconductor Fragile glass tube
Power supply 12VDC / 24VDC 110-24VAC

How It Works
