UV Light Sterilizer For Well Water

PRODUCT INTRODUCTION

A Final Microbial Barrier Designed Around Real Operating Conditions The UV Water Purifier uses germicidal UVC light to inactivate bacteria, viruses and other susceptible microorganisms as water passes through the stainless-steel reactor. It is suitable for treated municipal water, groundwater after appropriate pretreatment, RO or UF permeate, process water and filtered reuse water.

Unlike chemical dosing, standard UV treatment does not add disinfectant, alter taste or require chemical storage. Treatment is immediate, making the system easy to integrate into continuous process lines and packaged water-treatment skids.

How 265 nm UV-C Disinfection Works

264 nm UV-C light is close to the peak absorption wavelength of microbial DNA and RNA. As water flows through the UV chamber, the UV lamp emits energy that penetrates bacteria, viruses, and other microorganisms, causing photochemical damage to their genetic material. This prevents them from replicating and reproducing, effectively inactivating them. The process requires no chemical additives, does not significantly alter the composition of the water, and leaves no disinfectant residue.

Design & Construction

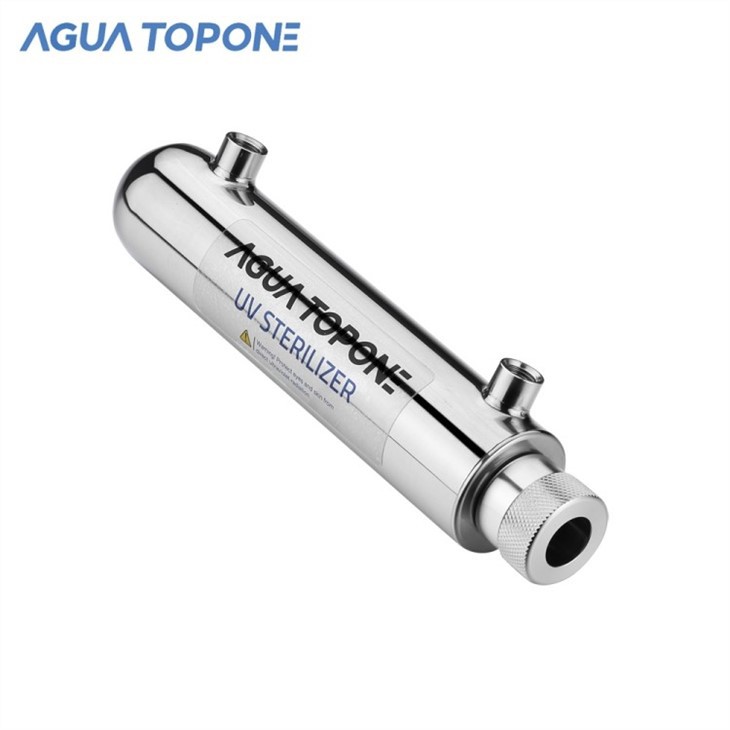

• UV Chamber (Reactor): Manufactured from polished SS304 stainless steel, with SS316L available for corrosive water or demanding industrial applications.
• UV Lamp: High-output low-pressure UVC lamp operating at 265 nm for effective microbial inactivation. Standard lamp life is approximately 8,000-9000 hours.
• Quartz Sleeve: High-purity quartz protects the UV lamp from direct water contact while maintaining efficient UV transmission.
• Electronic Ballast: Provides stable lamp output and includes preheating, lamp-failure protection and optional audible and visual alarms.
• Control System: Available with operating-status indication, accumulated working-time display, lamp-life monitoring and UV intensity display.

Salient Features of Our UV Systems

• Up to 99.99% E. coli inactivation under specified operating conditions.
• Standard design UV dose of 30 mJ/cm², with higher doses available on request.
• Chemical-free treatment with no change to water taste, colour, odour, pH or mineral composition.
• Immediate disinfection without storage tanks or extended contact time.
• Compact inline design for easy integration into new or existing water-treatment systems.
• Polished stainless-steel chamber with reliable welding and pressure resistance.
• Tested for 100,000 water-hammer cycles from 0.014 to 1.04 MPa.
• Maximum operating pressure up to 0.8 MPa, depending on the selected model.
• Easy lamp and quartz-sleeve replacement with readily available spare parts.
• Low operating cost and minimal routine maintenance.
• Multiple flow rates, connections, voltages and control configurations available.
• Suitable for drinking water, RO systems, food and beverage processing, aquaculture and industrial water treatment.

Best Suited For

Clear, pretreated water with stable flow, adequate UV transmittance and low turbidity, allowing UVC energy to reach microorganisms effectively.

They are widely used in:

• Private Well Water Systems – Protect homes using groundwater from microbial contamination.
• Homes & Cottages – Provide safe water for everyday household use.
• RVs, Camps & Boats – Ensure reliable water disinfection in remote locations.
• Rainwater Harvesting Systems – Add an extra protection step before use.
• Schools, Offices & Public Buildings – Support safe water supply.
• Restaurants, Hotels & Small Facilities – Provide clean and reliable water treatment.

Important Limitation

UV is not a filter. It does not remove sediment, hardness, salts, metals or chemicals, and it leaves no disinfectant residual downstream.

Why Buyers Select UV Compared with Routine Chlorine Dosing:

- Reduced chemical handling

- No normal chemical taste or odor

- Short contact time

- Automatic continuous treatment

UV has no residual effect, so some projects use it together with a residual disinfectant rather than as a complete replacement.

KEY COMPONENTS      UV System Maintenance UV water sterilizers are easy to maintain. Regular replacement of the UV lamp and cleaning of the quartz sleeve help ensure reliable disinfection performance. 1. UV Lamp For continuous operation, the UV lamp should be replaced every 12 months. Although the lamp may still light up, its UV-C output gradually decreases over time, reducing disinfection effectiveness. 2. Quartz Sleeve The quartz sleeve protects the UV lamp and allows UV-C light to pass through the water. Mineral deposits or dirt buildup can reduce UV transmission and lower system performance. Simply clean the quartz sleeve regularly with a suitable descaling solution. If it becomes damaged or cannot be cleaned effectively, replacement is recommended. Regular lamp replacement and quartz sleeve maintenance ensure consistent UV disinfection performance.

SPECIFICATIONS

OPERATING PRINCIPLES

Q1: What's your material of your products?

The material is 304 stainless steel, 316L is optional.

Q2:How do you ship the products and how about the delivery time?

We usually ship items by international express such as DHL, UPS, FedEx or TNT. Delivery time subject to delivery address. Airline and sea shipping are also optional.

Q3: You are trading company or factory?

We have our own factory in Ningbo, China.

Q4: What is your warranty for products?

Usually we provide one year warranty.

Q5: How long is the working life of your lamp?

It will be 8000hrs, and 9000hrs for Philips lamp.
