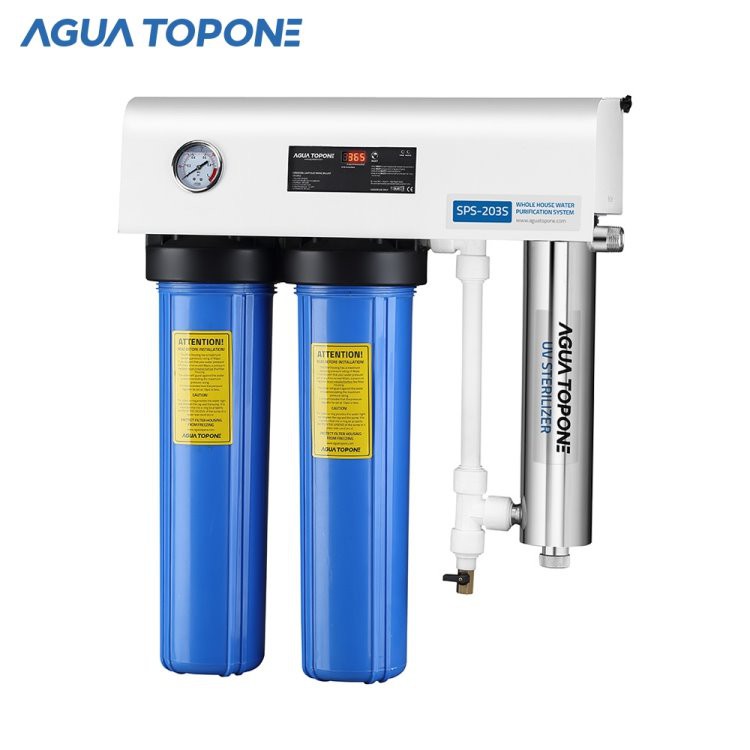

UV Water Filter System
REQUIREMENT
* Max working pressure:8 bar
* Ambient working temperature:4-45℃
* Non-toxic material, suitable for drinking water
* Head& bowl material: reinforced polyproylene
* Bowl material:plated steel
FEATURES
PRE-FILTER SOLUTION

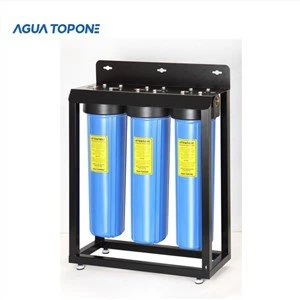

Includes one piece each of the PP sediment and carbon filter cartridge
SPACE EFFICIENT
High best UV water filter output lamp technology allows for a smaller footprint, while maintaining the same UV dose as a longer chamber
Reliable
High-performance under sink UV water filter, rigorously tested to provide consistent output over the entire lamp life (9000 hours)
CONVENIENT
With a heavy-duty, painted steel stand for a simple installation
EASE OF MAINTENANCE
Audible UV water filter replacement bulb reminder and countdown timer with digital display. Indicator lights show the status of system components. Warning lights appear when system maintenance is required
APPLICATION
Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or OEM applications
 |  |  |
SPECIFICATION
Model | Flow rate | Suitable cartridge (L*OD) | In/outlet port | Dimension L*W*H, mm | Lamp power |
SPS-203 | 12GPM | PP, CTO 20”*4.5” | 1" brass BSP | 600*220*760 | 48w |
| SPS - 203S | 12GPM | PP,CTO 20" × 4.5" | 1" brass BSP | 600 × 220 × 860 | 48w |
| SPS - 103 | 8 GPM | PP, CTO 10" × 4.5" | 1" brass BSP | 600 × 220 × 500 | 33 W |
| SPS - 103S | 8 GPM | PP, CTO 10" × 4.5" | 1" brass BSP | 600 × 220 × 650 | 33 W |

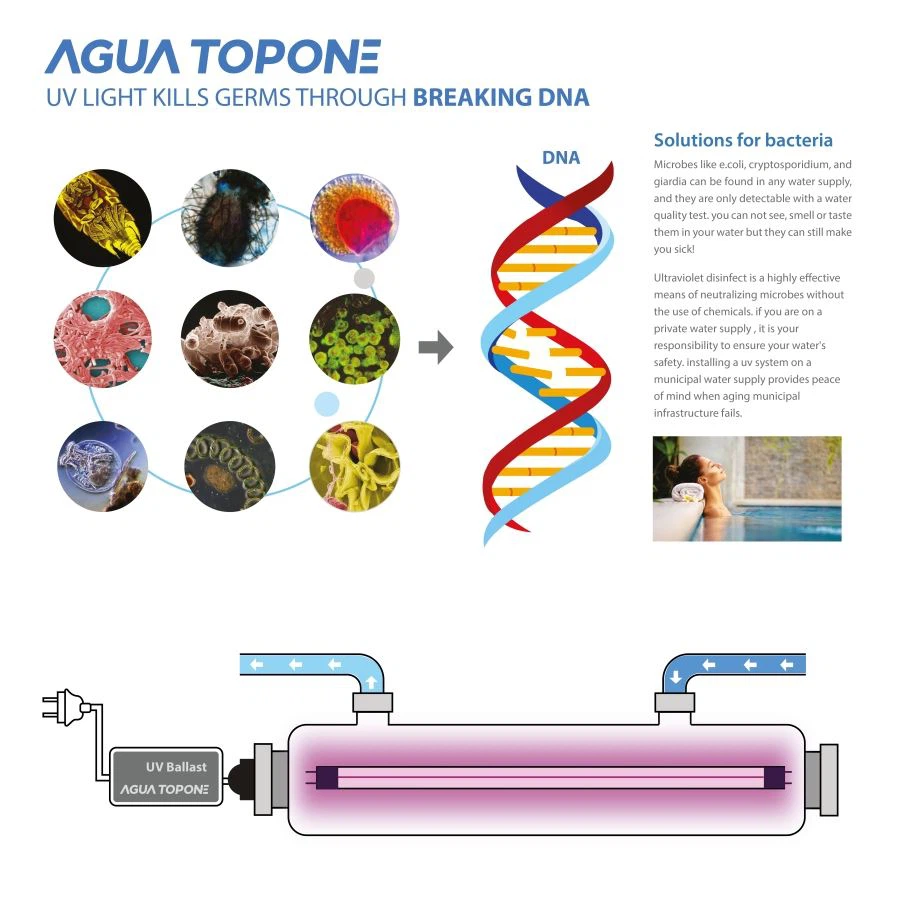

WORKING PRINCIPLE

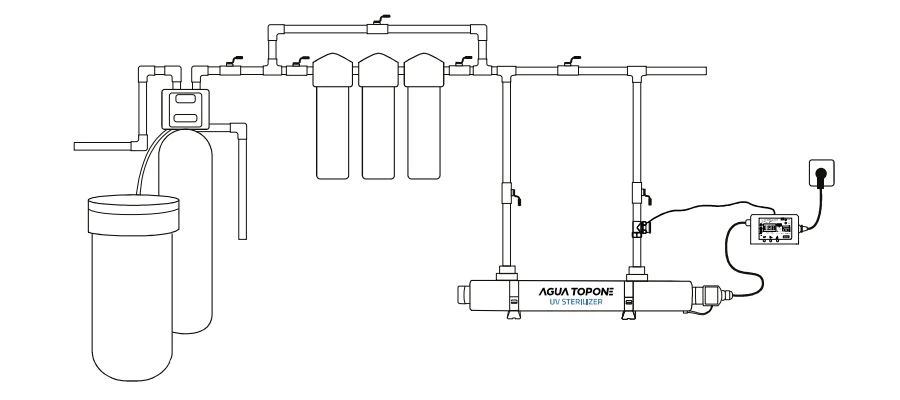

TYPICAL INSTALLATION RECOMMEND
PRODUCT APPLICATION
 |  |  |
Tap water | Sanitary water disinfection | Drinking water machine |
FAQ
Q1: What are the advantages of UV disinfection?
Compared with other disinfection methods, UV disinfection has a short contact time, usually within 0.5 minutes, and requires less space. It can save a lot of land and civil construction investment. It is very beneficial for the disinfection of sewage treatment plants in urban areas. According to the test results, it can be sterilized after tens of seconds of ultraviolet radiation. The average removal rate of the general coliform group can reach 98%, and the average removal rate of the total number of bacteria is 96.6%.
Q2:Introduction of UV over-current sterilizer?
①Small flow type
②Overcurrent
Q3:What is the manufacturing process of our products?
The stainless steel of the UV shell needs to be blanked---cutting---welding---polishing---pressure measurement---cleaning---drying---inspection---packing
Q4:What is the maximum pressure of our stainless steel ultraviolet rays?
Our maximum working pressure is 10BAR (10 kg)
