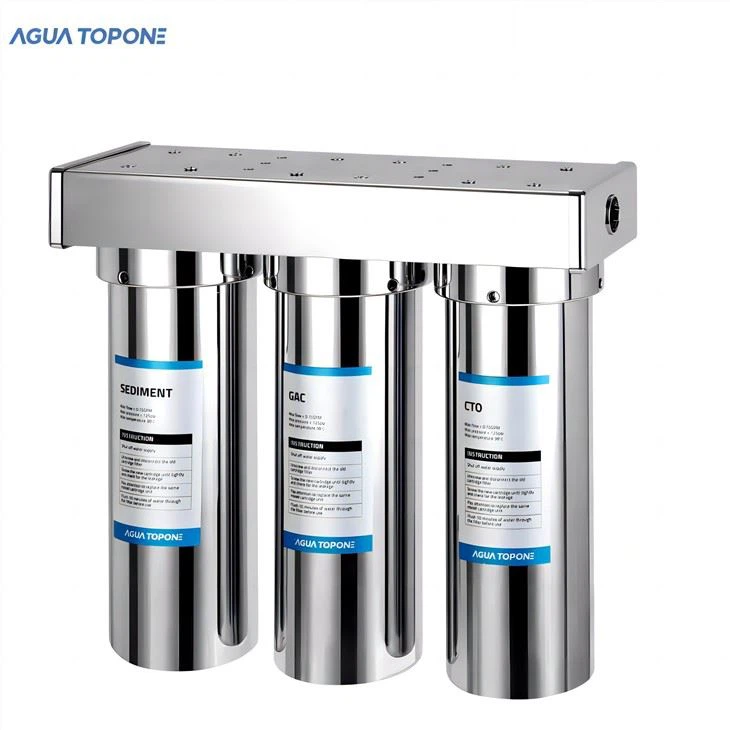

Stainless Steel Water Purifier
2
3
4

Stainless Steel Water Purifier

Max working pressure:10 bar (145 psi)
Ambient working temperature:4-60C(39-140°F)Non - toxic material, suitable for drinking water
Head material:reinforced polyproylene
Bowl material:304 stainless steel
Metal cover:plated steel

Send Inquiry

Product Introduction

stainless steel water purifier is a range of products equipped withfilter housing with plastic head,

stainless steel bowl, steel cover,designed to work at high pressureand temperature.

Removes major contaminants from your water supply and provides clean

water for drinking, showering, cooking, and other home use

Clean and healthywater for a safe home

Extend the life of your dishwasher, laundry machine, and other

appliances, and reduce the energy cost.

Carbon FiltrationProtect Your Health

Made with laboratory vacuum heated cleanedcoconut husk carbon.

Efficiently arranged Granular Activated Carbonmaximizes your filtration surface area reducing

Sediment FiltrationProtect Your Filters

4 density graded layers catch impurities as smallas 5 microns. Made with 100% pure polypropylene.

A Sediment filter protects your appliances andplumbing from damaging sediments, reducing

Carbon FiltrationProtect Your Health

Focuses on Chemical Contaminants, made withlaboratory vacuum heated carbon for high capacity filtration.

An Activated Carbon Block filter improves thetaste and purity of your water and gives you thebest value from your filters, reducing

stainless steel water purifier Features

1.Manufactured from the highest quality,

2.Leak-proof sealing is accomplished by compression against a top seated EPDM o-ring located in the housing's sump

3.Thick wall and added ribs make the housings ideal for a wide range of

applications

4.Buttress Thread Design Provides Superior Sealing & Greater Security

5.1" Inlet & Outlet

6.Polypropylene construction provides excellent chemical resistance with most acids, alcohol, ammonia, oils, plating solutions and many aggressive chemicals

7.Housings supplied with pressure release valves

8.Rated for temperatures to 100°F andpressures to 90 psi

9.Utilizes 20 in.Big Blue Commercial Housingwith Pressure Relief Valve

SPECIFICATION

Model	SUITABLE CARTRIDGE (L × OD)	IN / OUTLET PORT	DIMENSION L × W × H, mm
PH2-S101	PP 10" × 2.5"	1/2'' brass BSP	100 × 90 × 330
PH2-S102	PP, CTO10" × 2.5"	1/2'' brass BSP	270 × 130 × 40
PH2-S103	PP, GAC, CTO10" × 2.5"	1/2'' brass BSP	350 × 115 × 320
PH2-S104	PP, GAC, CTO, UF10" × 2.5"	1/2'' brass BSP	435 × 115 × 320
