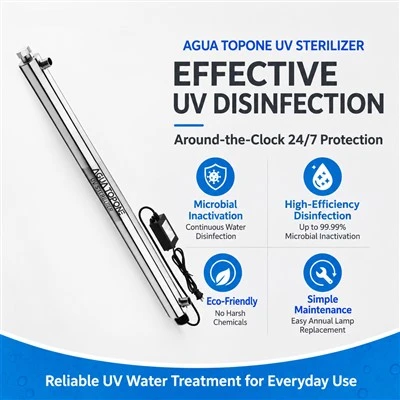

Ultraviolet Light Purifier
Alarm:Audible and visual
lndicator:Lamp operation and failure
Optional digital display ballast
ultraviolet light purifier features
High quality UV ballast meets international certification such as CE, UL standard
Reliable High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life
Controller will go into alarm if the lamp fails
UV chamber with great welding process which enables to pass 1.04MPa 100,000 times water hammer test
Perfect for a wide range of single-faucet, point-of-use or low flow point-of-entry water treatment solutions in homes, cottages, or OEM applications.
ultraviolet light purifier water quality requirement
Maximum operating pressure 0.8MPa(116psi)
Ambient water temperature 2-40℃(36-104℉)
lron<0.3ppm(0.3mg/L)
Hardness<7gpg(120mg/L)
Turbidity<1NTU
UV transmittance>75%
UV dose≧30mJ/cm2
![]() | ![]() | ![]() |
SPECIFICATION
Model number | Flow rate (GPM) | chamber dimension | In/outlet size | Package size (cm) | Lamp watts |
SDE-055 | 12gpm | 950*63.5mm | 3/4” male | 119×28×41.5/8sets | 55w |
WORKING PRINCIPLE
PRODUCT APPLICATION
![]() | ![]() | ![]() | ![]() |
| Tap water | Sanitary water disinfection | Coffee machine | Drinking water machine |
