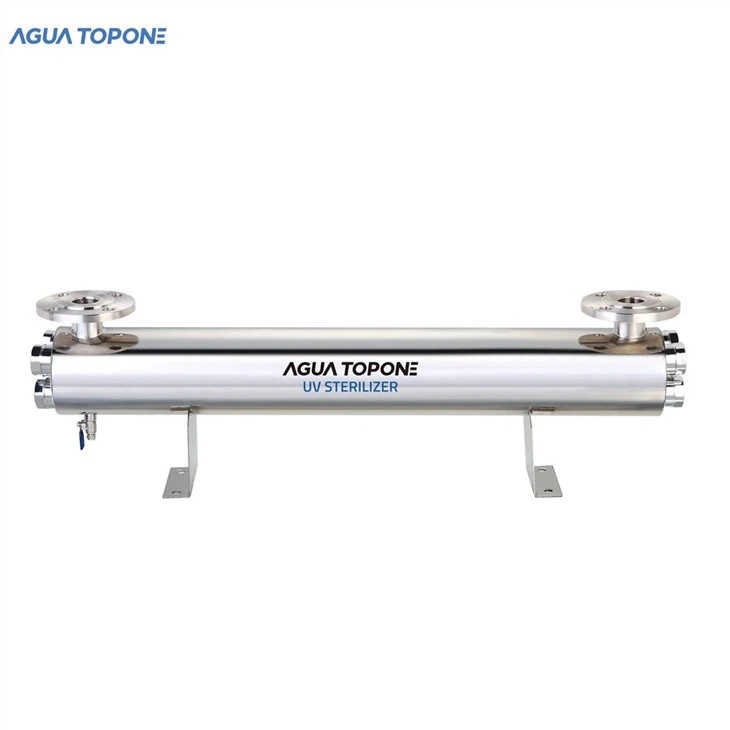

UV Light Sterilization

The SDS range has 3 models in the range and options to allow flexible installation, the SDS Range is ideal for under sink,whole house, borehole, swimming pool etc.
REQUIREMENT
* Maximum operating pressure
* Ambient water temperature: 2 - 40 ℃ (36 - 104 ℉)
* Iron < 0.3ppm (0.3 mg / L)
* Hardness < 7gpg (120 mg / L)
* Turbidity < 1 NTU
* UV transmittance > 75%
* UV dose≧30mJ/cm2
* Voltage 110V/220V 50/60Hz
* Alarm Audible and visual
* lndicator Lamp operation and failure
* Optional digital display ballast

Send Inquiry

Product Introduction

When normal skin comes into contact with water, there will not be any symptoms of discomfort, but if the water is seriously polluted, in such a case, the skin will be prone to some symptoms,and in severe cases, it will cause skin diseases and seriously endanger health.In life, there are some people who have itchy skin after coming into contact with water,which makes them very scared and worried.

UV light sterilization offers many advantages for the treatment of microbiological contaminants like bacteria,viruses,molds,algae,yeast,and oocysts like cryptosporidium and giardia.
Instantly improve indoor air quality by filtering water throughout.
It does not require electricity,drainage or backflushing and does not waste water.
Enjoy the healthiest shower experience for softer skin and shinier hair.
Improves air quality by reducing vaporized volatile organic compounds produced by chemicals.
It does not require electricity, sewage or back-up water and does not generate waste water.
It essentially reduces lead, chlorine, sediment, and more.

FEATURES

High quality UV ballast meets international certification such as CE,UL standard
Reliable High-performance UV lamp,rigorously tested to provide consistent output over the entire lamp life
Controller will go into alarm if the lamp fails
UV chamber with great welding process which enables to pass 1.04MPa 100,000 times water hammer test
Perfect for a wide range of single-faucet, point-of-use or low flow point-of-entry water treatment solutions in homes, cottages, or OEM applications.

SDS-2

SDS-3

SPECIFICATION

Model	Flow rate		In/outlet	Reactor	UV	Lamp	Ballast
Model	m3/hr	GPM	port	dimension/mm	Lamp code	Power	EB-G55
SDS-11	5.4	24	1''make	950*108	UVT-455	55w*2	EB-G55
SDS-165	8.1	36	1.5''make	950*133	UVT-455	55w*3	EB-G55
SDS-220	10.9	48	1.5''make	950*133	UVT-455	55w*4	EB-G55
