UV Water Disinfection

REQUIREMENT
* Maximum operating pressure: 8bar (116 psi)
* Ambient water temperature: 2 - 40 ℃ (36 - 104 ℉)
* Iron < 0.3ppm (0.3 mg / L)
* Hardness < 7gpg (120 mg / L)
* Turbidity < 1 NTU
* UV transmittance > 75%
Send Inquiry

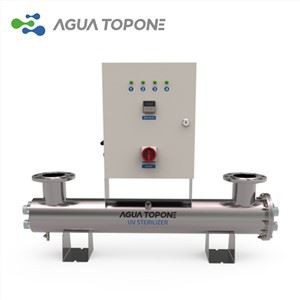

Product Introduction

The final treatment step in municipal wastewater treatment is the UV Water Disinfection process. Disinfection is required to reduce and destroy the bacteria, virus and protozoa populations in the wastewater before discharge into the receiving body of water. The disinfection of wastewater is critical to the protection of public health and the environment.

AGUA TOPONE UV Water Disinfection with the finest 316 Stainless Steel. UV offers a key advantage over chlorine-based disinfection, due to its ability to inactivate protozoa that threaten public health – most notably Cryptosporidium and Giardia.


FEATURES OF THIS ULTRAVIOLET WATER STERILIZER SYSTEM AS BELOW:

UV is an effective, safe and environmentally friendly way to disinfect wastewater. Unlike chemical disinfection in which substantial contact tanks and time are needed, UV light provides rapid, effective

inactivation of microorganisms through a physical process. When bacteria, viruses and protozoa are exposed to germicidal wavelengths of UV light, they are instantaneously rendered incapable of reproducing and infecting. The process adds nothing to the water but UV light, has no impact on chemical composition or dissolved oxygen content, and does not create disinfection by-products.



123


SPECIFICATION


Model

Flow rate(GPM)

Chamber size

In/outlet

UV lamp

UV lamp

Quartz tube

Ballast

SB10-HA8

1485

1618x 274mm

DN200(8")

GPHHA1554T6L

320W*8

QT6-1589

ZUM4-2100-320


WORKING PRINCIPLE


4


TYPICAL INSTALLATION RECOMMEND


5


PRODUCT APPLICATION

6789

Secondary water supply disinfection

Circulation cooling

Spring or swimming

Industrial water disinfection


APPLICATION


UV disinfection is a safe, simple treatment process that does not use chemicals. Wastewater disinfected with UV does not have any negative

effects on receiving waters of the treatment plant. As a result, it is well suited to meet current human safety and environmental safety

regulations. And as regulations continue to evolve, we believe that UV wastewater disinfection remains the most responsible choice for

protecting our communities and the environment.
