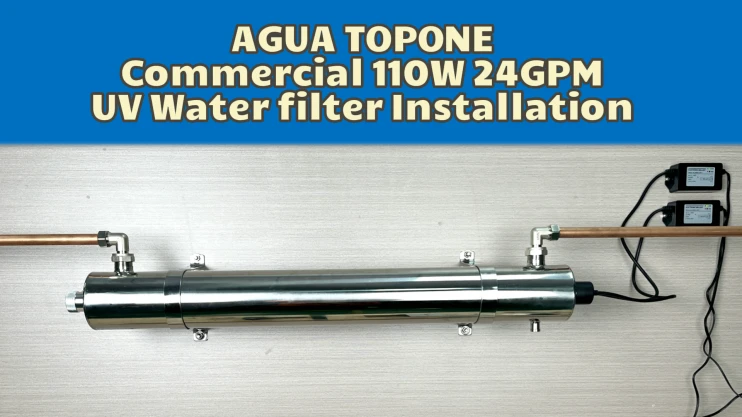

Agua Topone believes that technology holds the key to safer, healthier, and better-tasting water. We are committed to providing you with professional water disinfection and whole-house water purification technology, along with expert knowledge and guidance. In today's blog post, we will guide you through the installation of Agua Topone's hot-selling 24GPM (LPM) UV systems, helping you save time and money by installing it yourself.
This unit is a 24GPM system. You need to check and ensure that you got everything you need, and they are in good condition.
You would get these parts from the package：A stainless steel chamber,Two UV bulbs ,Two sleeves
,Two UVC ballasts,For this 24GPM UV systems,we offer flexible stainless steel brackets which is much easier for you to install. Four O-rings,One operation manual
How to install quartz tubes, O-rings, and stainless steel brackets:
1.Install 2 O-rings onto the closed end of the quartz tube (12mm from the edge)
2.Insert one of the quartz tubes into the reactor chamber
Please note that if you confuse the inner and outer surface of the O-ring,the sealing effect will be different.
3.Insert the other quartz tube into the reactor chamber.
4.Screw the Closed nut on this end,Screw the open nuts on other end
5.Separate the screws of the two stainless steel brackets for easy installation on the reactor.And secure the two stainless steel brackets ,at both ends of the reactor.
How to secure the stainless steel chamber in the proper installation position.
1.Firstly,you need to mark the mounting position.Make sure you have enough space
2.Fix the chamber brackets to the wall.
Note:It can be installed horizontally or vertically. When considering a vertical installation, it is important
to ensure that proper support and mounting provisions are in place to secure the UV system in a vertical position.
3. Please tighten the screws to secure the brackets in place.And find a proper position to place the electronic ballast.
How to install the UV bulb
1.Refer to the length of the electric cord.Insert the UV lamp into the quartz sleeve.
2.Connect the UV lamp with the 4-pin plug.And cover the protective cap for it
2.Connect the unit with your pipe system
4.Connect the controller with the power supply.The indicator of work will turn on.
And the fault part will blink and beep if the system failsPlease refer to the troubleshooting.
Okay, now you have completed all the installation steps. As you can see, installing the UV water purifier is easy with the proper guidance. By following these 12 steps, you can now enjoy safe and healthy drinking water. Save time and money by troubleshooting on your own with the guidance of Agua Topone.
For more information, please visit our website:www.aguatopone.com or www.aquatopone.com
You can also have a more visual understanding of the installation steps by watching the instructional video.
