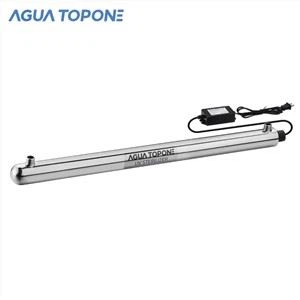

Uv Whole House Water Sterilizer
SB10-H04-2
SB10-H043
SB10-H044

UV Sterilizing Equipment

Voltage:110V/220V 50/60Hz
Alarm:Audible and visual
lndicator:Lamp operation and failure
Digital display ballast
UV intensity monitor Optional
PLC program control is optional

Send Inquiry

Product Introduction

People attach great importance to their own health, so more and more people focus on water quality. Then the problem of uv whole house water sterilizer is very concerned by everyone.

The principle of UV treatment of water is to use the irradiation intensity of the UV germicidal lamp to be inversely proportional to the distance of the object to be illuminated.

uv whole house water sterilizer effectively improve the UV penetration rate of water quality. The penetration rate is one of the criteria for evaluating water quality. The penetration rate is not exactly the same as the turbidity. The turbidity is only a representation of the suspended matter in the water, and does not represent the dissolved substances in the water. Ultraviolet rays can oxidize organic matter in the water and can also destroy some The structure of substances that can cause water turbidity, combined with the filtration process, can improve the penetration rate of water quality.

uv whole house water sterilizer requirement

Maximum operating pressure 0.8Mpa(116psi)

Ambient water temperature 2-40oC(36-104oF)

lron<0.3ppm(0.3mg/L)

Hardness<7gpg(120mg/L)

Turbidity<1NTU

UV transmittance>75%

UV dose≧30mJ/cm2

SPECIFICATION

Model number	Flow rate (GPM)	chamber dimension	In/outlet port	Lamp power	Ballast code
SB10-H02	61gpm	1212*133mm	DN65(2.5〞)	120w*2	ZUM3-800-120
SB10-H03	200gpm	1212*168mm	DN80(3〞)	120w*3	ZUM3-800-120
SB10-H04	155pm	1212*168mm	DN100(4〞)	120w*4	ZUM3-800-120
